SKU: 160-2-SYN-NO11-RENOLD
Renold Synergy 160-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 2 inch Pitch
- Regular price
- $523.17 ex VAT
- Sale price
- $523.17
- Regular price
-
Not in stock
Quantity Price Breaks
2
$465.62
5
$439.46
10
$434.23
29
$429.00
49
$423.77
75
$418.54
100
$392.38
200
$387.15
250
$381.91
500
$376.68
1000
$366.22
SKU:
160-2-SYN-NO11-RENOLD
Renold Synergy 160-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 2 inch Pitch
- Regular price
- $523.17 ex VAT
- Sale price
- $523.17
- Regular price
-
Description

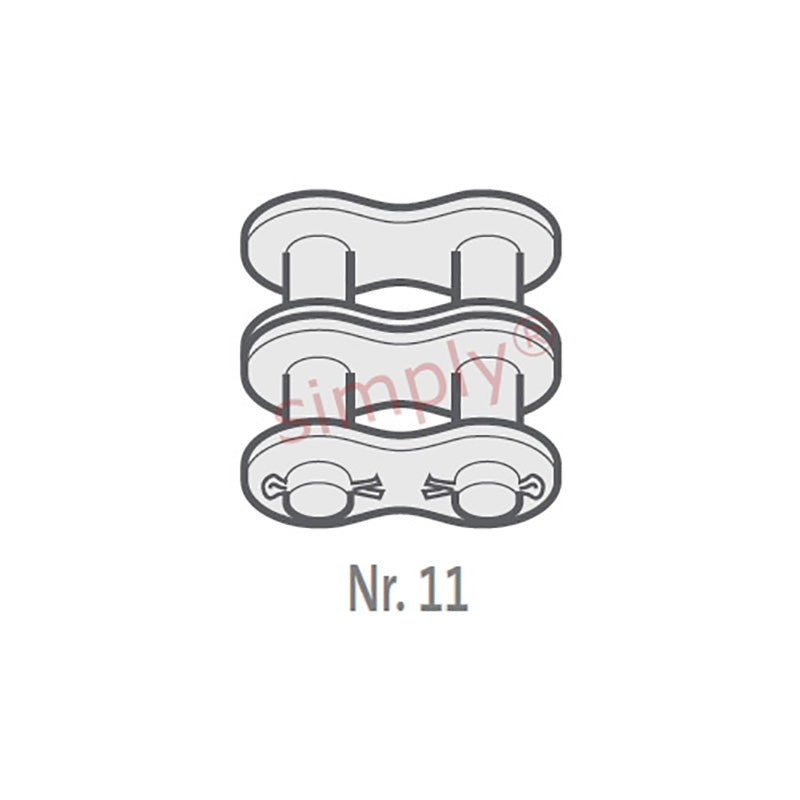

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 2 inch |
| Pitch (A) | = | 50.8mm |
| Inside Width min (B) | = | 31.55mm |
| Roller Diameter max (C) | = | 28.58mm |
| Plate Height max (D) | = | 48.26mm |
| Plate Width Inner max (E) | = | 6.35mm |
| Plate Width Outer max (F) | = | 6.35mm |
| Pin Diameter max (G) | = | 14.29mm |
| Pin Length max (H2) | = | 121.6mm |
| Connecting Link Extension max (J) | = | 6.5mm |
| Transverse Pitch nom (K) | = | 58.55mm |
| ISO606 Tensile Strength min | = | 446000 N |
| Weight | = | 0.87kg/m |
