SKU: 160-1-SYN-NO12-RENOLD
Renold Synergy 160-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 2 inch Pitch
- Regular price
- $509.57 ex VAT
- Sale price
- $509.57
- Regular price
-
Not in stock
Quantity Price Breaks
2
$453.52
5
$428.04
10
$422.94
29
$417.85
49
$412.75
75
$407.66
100
$382.18
200
$377.08
250
$371.99
500
$366.89
1000
$356.70
SKU:
160-1-SYN-NO12-RENOLD
Renold Synergy 160-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 2 inch Pitch
- Regular price
- $509.57 ex VAT
- Sale price
- $509.57
- Regular price
-
Description

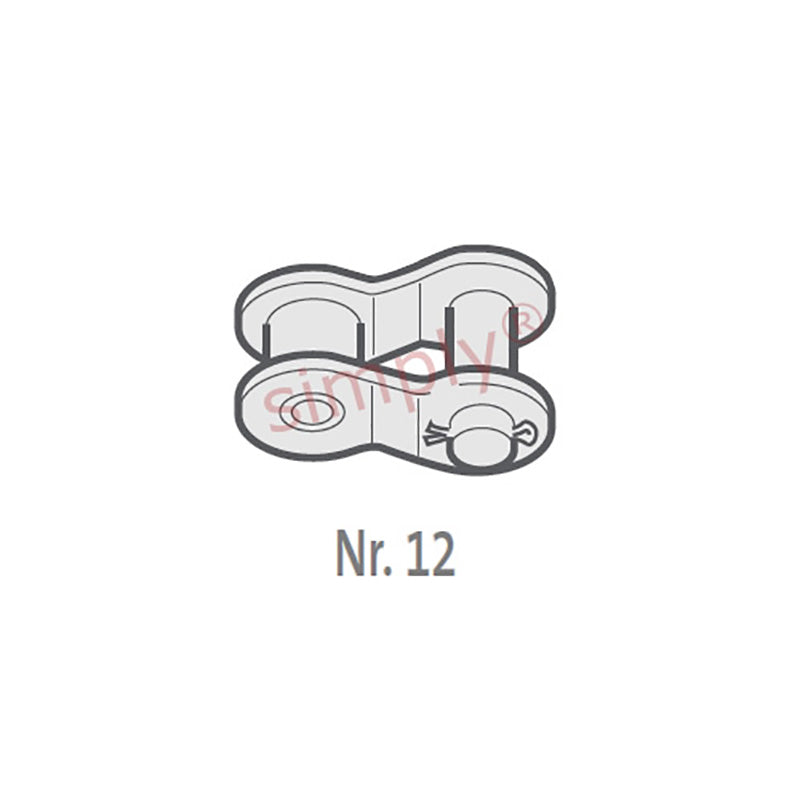

| Renold No. 12 ANSI Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 2 inch |
| Pitch (A) | = | 50.8mm |
| Inside Width min (B) | = | 31.55mm |
| Roller Diameter max (C) | = | 28.58mm |
| Plate Height max (D) | = | 48.26mm |
| Plate Width Inner max (E) | = | 6.35mm |
| Plate Width Outer max (F) | = | 6.35mm |
| Pin Diameter max (G) | = | 14.29mm |
| Pin Length max (H1) | = | 63.1mm |
| Connecting Link Extension max (J) | = | 6.5mm |
| ISO606 Tensile Strength min | = | 223000 N |
| Weight | = | 0.45kg/m |
