SKU: 140-1-SYN-NO12-RENOLD
Renold Synergy 140-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
- Regular price
- $425.47 ex VAT
- Sale price
- $425.47
- Regular price
-
Not in stock
Quantity Price Breaks
2
$378.67
5
$357.39
10
$353.14
29
$348.89
49
$344.63
75
$340.38
100
$319.10
200
$314.85
250
$310.59
500
$306.34
1000
$297.83
SKU:
140-1-SYN-NO12-RENOLD
Renold Synergy 140-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
- Regular price
- $425.47 ex VAT
- Sale price
- $425.47
- Regular price
-
Description
| Renold No. 12 ANSI Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical

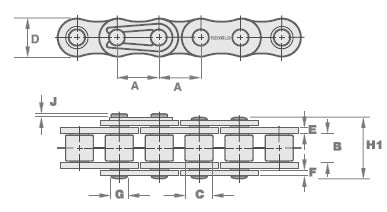

| Pitch (A) | = | 1.75 inch |
| Pitch (A) | = | 44.45mm |
| Inside Width min (B) | = | 25.23mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 42.23mm |
| Plate Width Inner max (E) | = | 5.61mm |
| Plate Width Outer max (F) | = | 5.61mm |
| Pin Diameter max (G) | = | 12.71mm |
| Pin Length max (H1) | = | 52.9mm |
| Connecting Link Extension max (J) | = | 5.2mm |
| ISO606 Tensile Strength min | = | 170000 N |
| Weight | = | 0.397kg/m |
