SKU: 12B-2-NO30-MB
Branded 12B-2-NO30 BS Duplex Chain Double Cranked Link 3/4 inch Pitch
- Regular price
- $9.27 ex VAT
- Sale price
- $9.27
- Regular price
-
In stock
Quantity Price Breaks
2
$8.25
5
$7.79
10
$7.69
29
$7.60
49
$7.51
75
$7.42
100
$6.95
200
$6.86
250
$6.77
500
$6.67
1000
$6.49
SKU:
12B-2-NO30-MB
Branded 12B-2-NO30 BS Duplex Chain Double Cranked Link 3/4 inch Pitch
- Regular price
- $9.27 ex VAT
- Sale price
- $9.27
- Regular price
-
Description

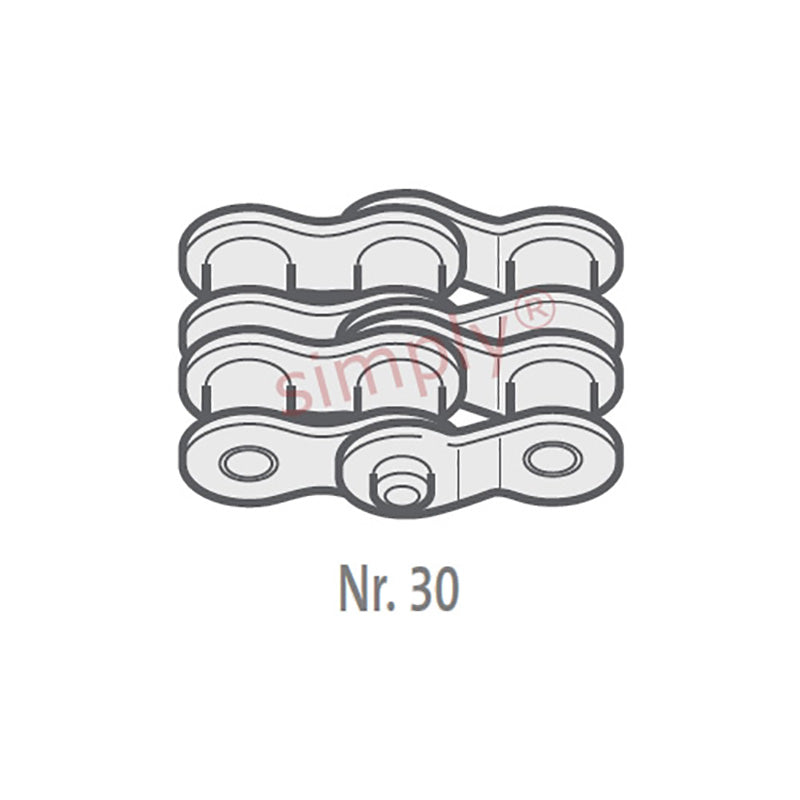

Branded DOL / No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 11.68mm |
| Roller Diameter max (C) | = | 12.07mm |
| Plate Height max (D) | = | 16.1mm |
| Plate Width Inner max (E) | = | 1.8mm |
| Plate Width Outer max (F) | = | 1.8mm |
| Pin Diameter max (G) | = | 5.72mm |
| Pin Length max (H2) | = | 42.1mm |
| Connecting Link Extension max (J) | = | 1.5mm |
| Transverse Pitch nom (K) | = | 19.46mm |
| ISO606 Tensile Strength min | = | 57800 N |
| Weight | = | 0.015kg/m |
