SKU: 11206TN9-EU

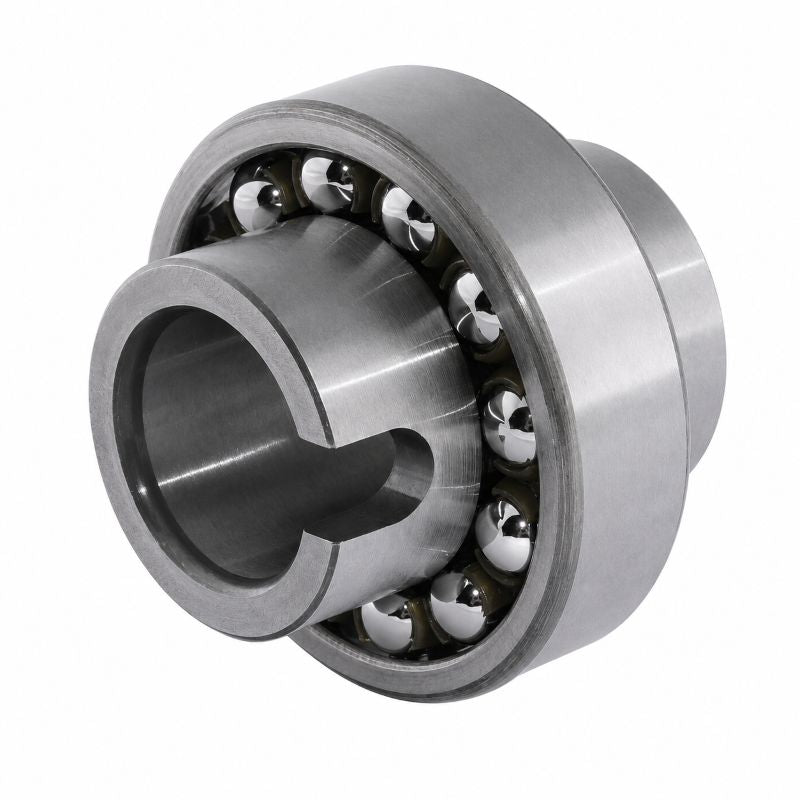

11206TN9 Budget Open Self Aligning Ball Bearing with Extended Inner Ring 30x62x16mm
- Regular price
- $32.20 ex VAT
- Sale price
- $32.20
- Regular price
-
Quantity Price Breaks
11206TN9 Budget Open Self Aligning Ball Bearing with Extended Inner Ring 30x62x16mm
- Regular price
- $32.20 ex VAT
- Sale price
- $32.20
- Regular price
-
Description
Self Aligning Ball Bearings with Extended Inner Race: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds. They have an extended inner race to facilitate location to keyways etc.
Benefits: Tolerates misalignment, cool running, self centering.
Technical
| d | = | 30mm |
| D | = | 62mm |
| B | = | 48mm |
| C | = | 16mm |
| Dynamic load C | = | 15.6 kN |
| Static load Co | = | 4.65 kN |
| Fatigue load limit Pu | = | 0.24 kN |
| Limiting speed | = | 6700 rpm |
| Weight | = | 0.35 kg |
| d2 | = | 40.1mm |
| D1 | = | 53.2mm |
| r1r2 min | = | 1mm |
| Da max | = | 56.4mm |
| ra max | = | 1mm |
| Calculation factor e | = | 0.25 |
| Calculation factor Y0 | = | 2.5 |
| Calculation factor Y1 | = | 2.5 |
| Calculation factor Y2 | = | 3.9 |
