SKU: 10B-3-SD-NO26-RENOLD
Renold SD 10B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
- Regular price
- $8.18 ex VAT
- Sale price
- $8.18
- Regular price
-
In stock
Quantity Price Breaks
2
$7.28
5
$6.87
10
$6.79
29
$6.71
49
$6.63
75
$6.54
100
$6.14
200
$6.05
250
$5.97
500
$5.89
1000
$5.73
SKU:
10B-3-SD-NO26-RENOLD
Renold SD 10B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
- Regular price
- $8.18 ex VAT
- Sale price
- $8.18
- Regular price
-
Description

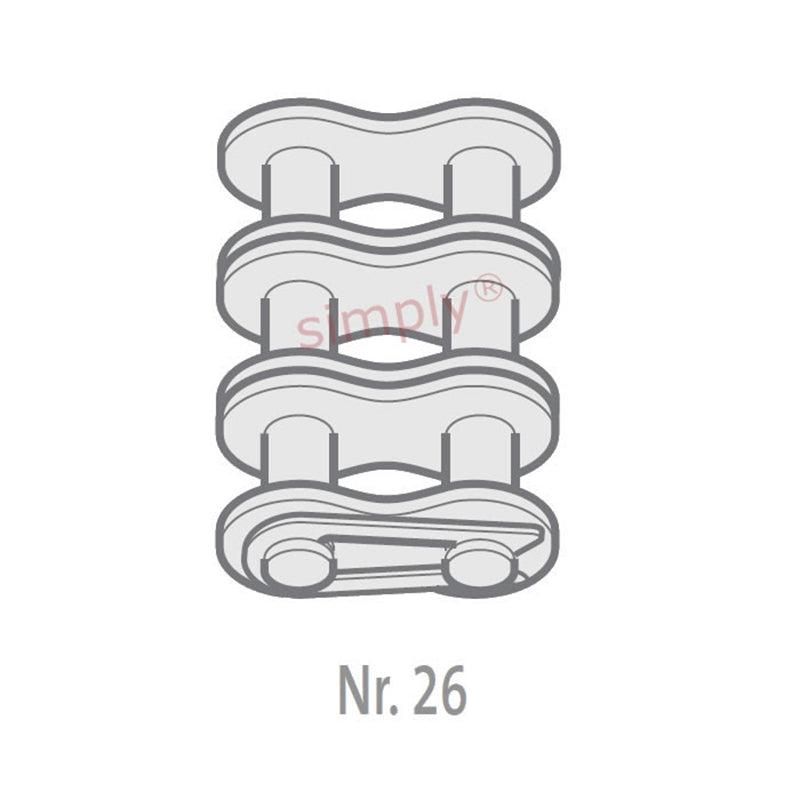

| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.65mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.7mm |
| Plate Width Inner max (E) | = | 1.65mm |
| Plate Width Outer max (F) | = | 1.65mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H1) | = | 53.2mm |
| Connecting Link Extension max (J) | = | 4.2mm |
| ISO606 Tensile Strength min | = | 66650 N |
| Weight | = | 0.014kg/m |
