SKU: 10B-2-SNX-NO26-RENOLD
Renold SYNO 10B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
- Regular price
- $32.24 ex VAT
- Sale price
- $32.24
- Regular price
-
Not in stock
Quantity Price Breaks
2
$28.69
5
$27.08
10
$26.76
29
$26.44
49
$26.11
75
$25.79
100
$24.18
200
$23.86
250
$23.54
500
$23.21
1000
$22.57
SKU:
10B-2-SNX-NO26-RENOLD
Renold SYNO 10B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
- Regular price
- $32.24 ex VAT
- Sale price
- $32.24
- Regular price
-
Description

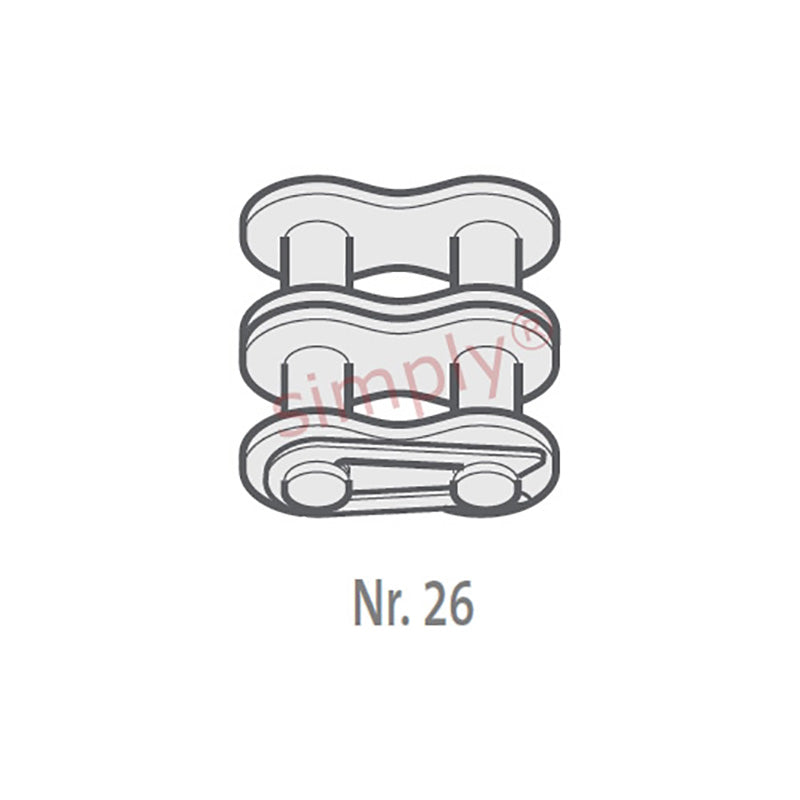

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.65mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 35.4mm |
| Connecting Link Extension max (J) | = | 2.5mm |
| Transverse Pitch nom (K) | = | mm |
| ISO606 Tensile Strength min | = | 44500 N |
| Weight | = | 0.009kg/m |
