SKU: 100-3-SYN-NO58-RENOLD

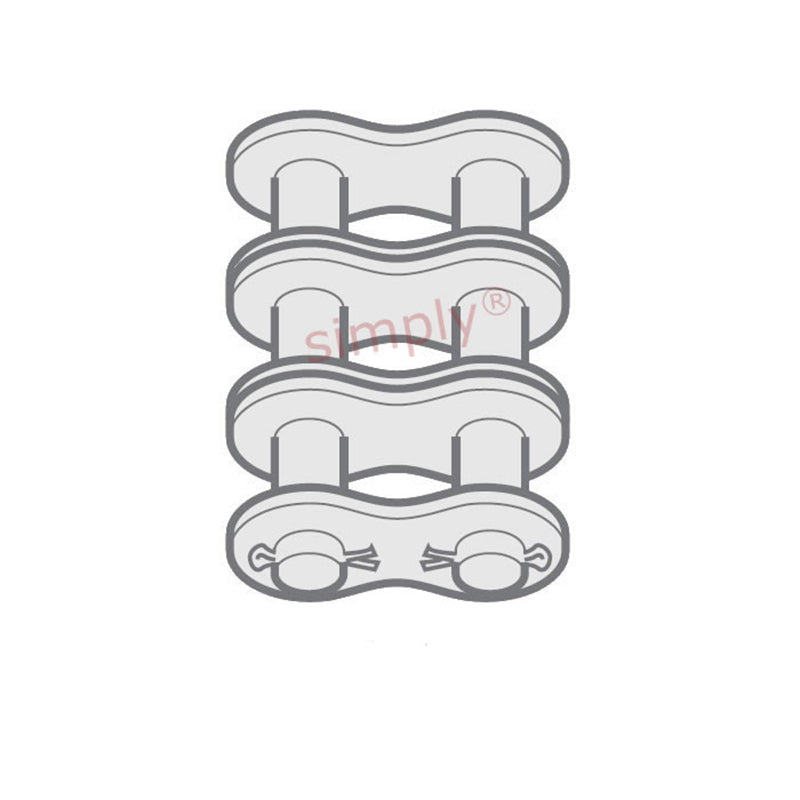

Renold Synergy 100-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
- Regular price
- $202.04 ex VAT
- Sale price
- $202.04
- Regular price
-
Not in stock
Quantity Price Breaks
2
$179.82
5
$169.71
10
$167.69
29
$165.67
49
$163.65
75
$161.63
100
$151.53
200
$149.51
250
$147.49
500
$145.47
1000
$141.43
SKU:
100-3-SYN-NO58-RENOLD
Renold Synergy 100-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 1-1/4 inch Pitch
- Regular price
- $202.04 ex VAT
- Sale price
- $202.04
- Regular price
-
Description
| Renold No. 58 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1.25 inch |
| Pitch (A) | = | 31.75mm |
| Inside Width min (B) | = | 18.9mm |
| Roller Diameter max (C) | = | 19.05mm |
| Plate Height max (D) | = | 30.17mm |
| Plate Width Inner max (E) | = | 4.06mm |
| Plate Width Outer max (F) | = | 4.06mm |
| Pin Diameter max (G) | = | 9.54mm |
| Pin Length max (H2) | = | 111.2mm |
| Connecting Link Extension max (J) | = | 4.2mm |
| Transverse Pitch nom (K) | = | 35.76mm |
| ISO606 Tensile Strength min | = | 261000 N |
| Weight | = | 0.08kg/m |
