SKU: 08B-3-SYN-NO30-RENOLD
Renold Synergy 08B-3-NO30 BS Triplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- $66.38 ex VAT
- Sale price
- $66.38
- Regular price
-
Not in stock
Quantity Price Breaks
2
$59.08
5
$55.76
10
$55.10
29
$54.43
49
$53.77
75
$53.10
100
$49.79
200
$49.12
250
$48.46
500
$47.79
1000
$46.47
SKU:
08B-3-SYN-NO30-RENOLD
Renold Synergy 08B-3-NO30 BS Triplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- $66.38 ex VAT
- Sale price
- $66.38
- Regular price
-
Description

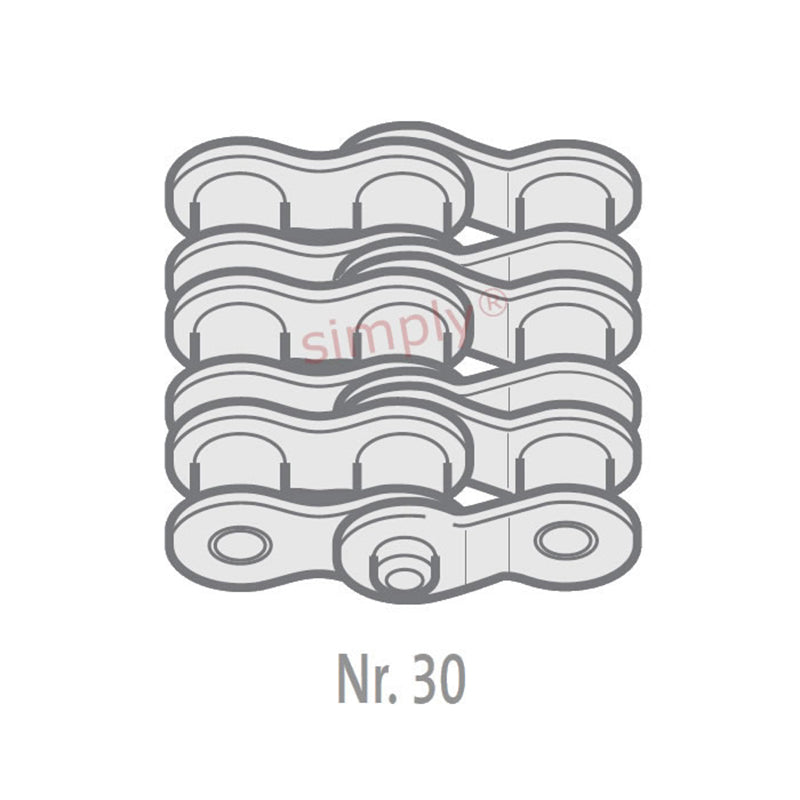

| Renold No. 30 European (BS) Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.7mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H2) | = | 44.3mm |
| Connecting Link Extension max (J) | = | 2mm |
| Transverse Pitch nom (K) | = | 13.92mm |
| ISO606 Tensile Strength min | = | 44500 N |
| Weight | = | 0.006kg/m |
