SKU: 08B-3-BB-NO26-RENOLD
Renold Blue Box 08B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
- Regular price
- $14.93 ex VAT
- Sale price
- $14.93
- Regular price
-
In stock
Quantity Price Breaks
2
$13.29
5
$12.54
10
$12.39
29
$12.24
49
$12.09
75
$11.94
100
$11.20
200
$11.05
250
$10.90
500
$10.75
1000
$10.45
SKU:
08B-3-BB-NO26-RENOLD
Renold Blue Box 08B-3-NO26 BS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
- Regular price
- $14.93 ex VAT
- Sale price
- $14.93
- Regular price
-
Description

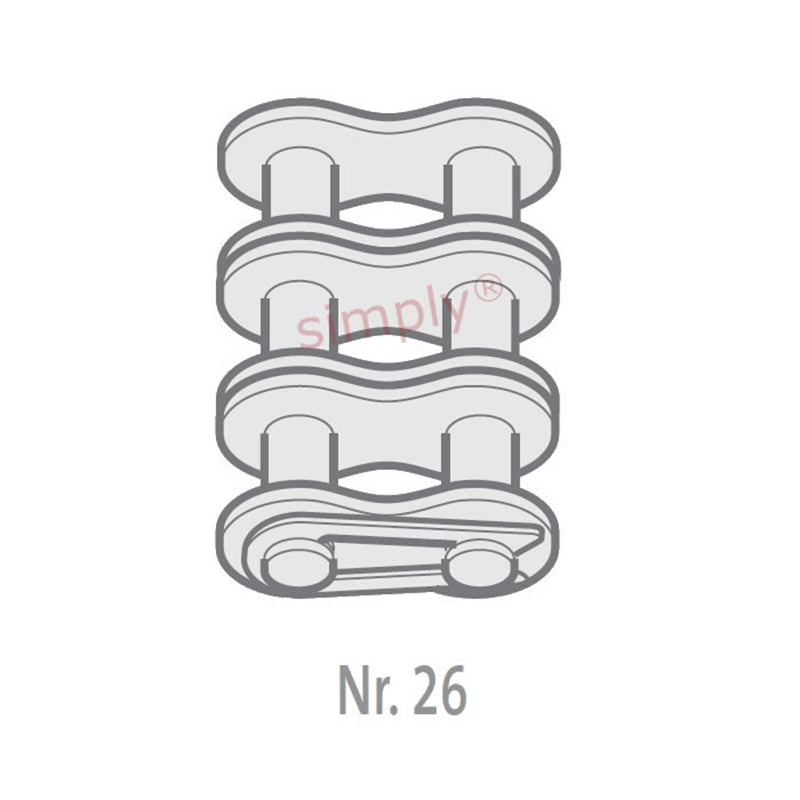

| Renold No. 26 European (BS) Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.7mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H2) | = | 44.3mm |
| Connecting Link Extension max (J) | = | 2mm |
| Transverse Pitch nom (K) | = | 13.92mm |
| ISO606 Tensile Strength min | = | 44500 N |
| Weight | = | 0.006kg/m |
