SKU: 08B-2-SYN-NO30-RENOLD
Renold Synergy 08B-2-NO30 BS Duplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- $44.90 ex VAT
- Sale price
- $44.90
- Regular price
-
In stock
Quantity Price Breaks
2
$39.96
5
$37.72
10
$37.27
29
$36.82
49
$36.37
75
$35.92
100
$33.68
200
$33.23
250
$32.78
500
$32.33
1000
$31.43
SKU:
08B-2-SYN-NO30-RENOLD
Renold Synergy 08B-2-NO30 BS Duplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- $44.90 ex VAT
- Sale price
- $44.90
- Regular price
-
Description

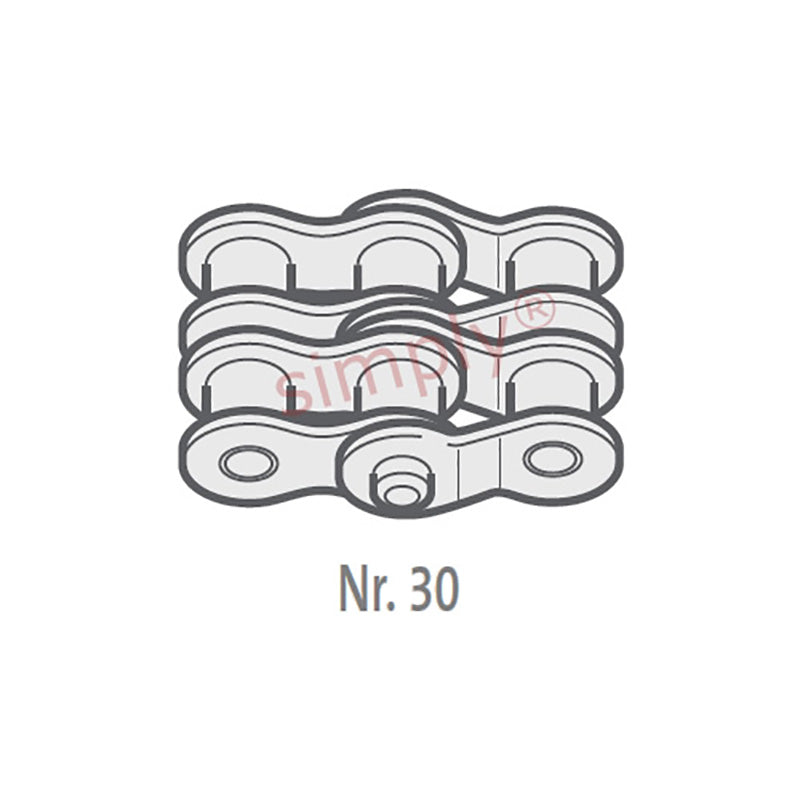

| Renold No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.7mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H2) | = | 30.4mm |
| Connecting Link Extension max (J) | = | 2mm |
| Transverse Pitch nom (K) | = | 13.92mm |
| ISO606 Tensile Strength min | = | 31100 N |
| Weight | = | 0.006kg/m |
