SKU: 08B-2-SNX-NO26-RENOLD
Renold SYNO 08B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
- Regular price
- $20.76 ex VAT
- Sale price
- $20.76
- Regular price
-
Not in stock
Quantity Price Breaks
2
$18.48
5
$17.44
10
$17.23
29
$17.02
49
$16.82
75
$16.61
100
$15.57
200
$15.36
250
$15.15
500
$14.95
1000
$14.53
SKU:
08B-2-SNX-NO26-RENOLD
Renold SYNO 08B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
- Regular price
- $20.76 ex VAT
- Sale price
- $20.76
- Regular price
-
Description

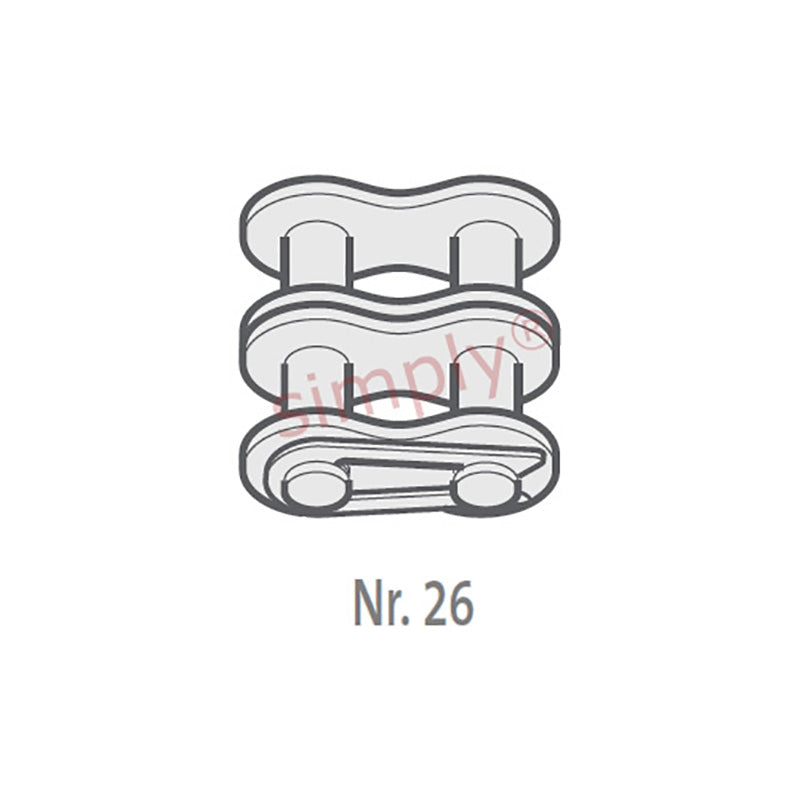

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.7mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H2) | = | 30.4mm |
| Connecting Link Extension max (J) | = | 2mm |
| Transverse Pitch nom (K) | = | mm |
| ISO606 Tensile Strength min | = | 31100 N |
| Weight | = | 0.006kg/m |
