SKU: 08B-2-BB-NO26-RENOLD
Renold Blue Box 08B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
- Regular price
- $10.75 ex VAT
- Sale price
- $10.75
- Regular price
-
In stock
Quantity Price Breaks
2
$9.57
5
$9.03
10
$8.92
29
$8.82
49
$8.71
75
$8.60
100
$8.06
200
$7.96
250
$7.85
500
$7.74
1000
$7.53
SKU:
08B-2-BB-NO26-RENOLD
Renold Blue Box 08B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
- Regular price
- $10.75 ex VAT
- Sale price
- $10.75
- Regular price
-
Description

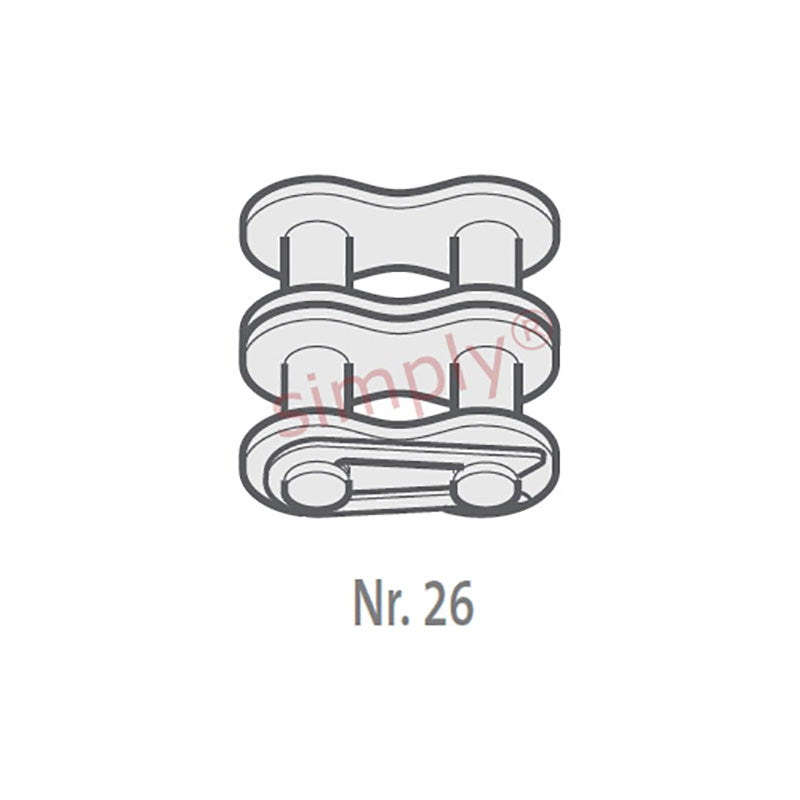

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.7mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H1) | = | 30.4mm |
| Connecting Link Extension max (J) | = | 2mm |
| ISO606 Tensile Strength min | = | 31100 N |
| Weight | = | 0.006kg/m |
