SKU: 08B-1-SD-NO12-RENOLD
Renold SD 08B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 1/2 inch Pitch
- Regular price
- $6.91 ex VAT
- Sale price
- $6.91
- Regular price
-
In stock
Quantity Price Breaks
10+
$6.15
19+
$5.80
29+
$5.74
39+
$5.67
49+
$5.60
74+
$5.53
99+
$5.18
199+
$5.11
249+
$5.04
499+
$4.98
999+
$4.84
SKU:
08B-1-SD-NO12-RENOLD
Renold SD 08B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 1/2 inch Pitch
- Regular price
- $6.91 ex VAT
- Sale price
- $6.91
- Regular price
-
Description

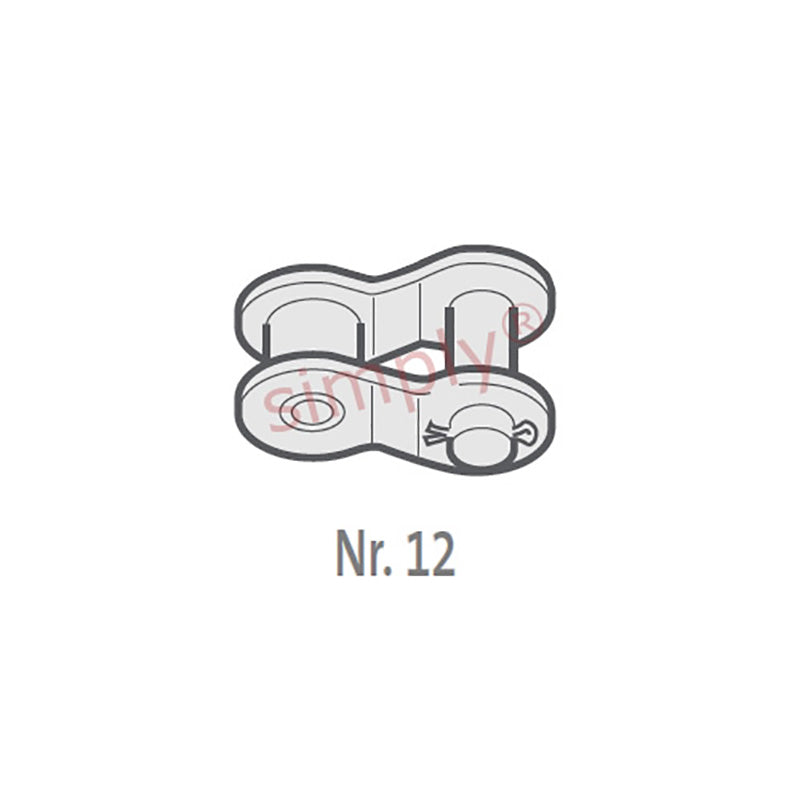

| Renold No. 12 European (BS) Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.75mm |
| Roller Diameter max (C) | = | 8.51mm |
| Plate Height max (D) | = | 11.8mm |
| Plate Width Inner max (E) | = | 1.5mm |
| Plate Width Outer max (F) | = | 1.5mm |
| Pin Diameter max (G) | = | 4.45mm |
| Pin Length max (H1) | = | 16.7mm |
| Connecting Link Extension max (J) | = | 1.3mm |
| ISO606 Tensile Strength min | = | 17800 N |
| Weight | = | 0.011kg/m |
