SKU: 06B-2-SYN-NO26-RENOLD

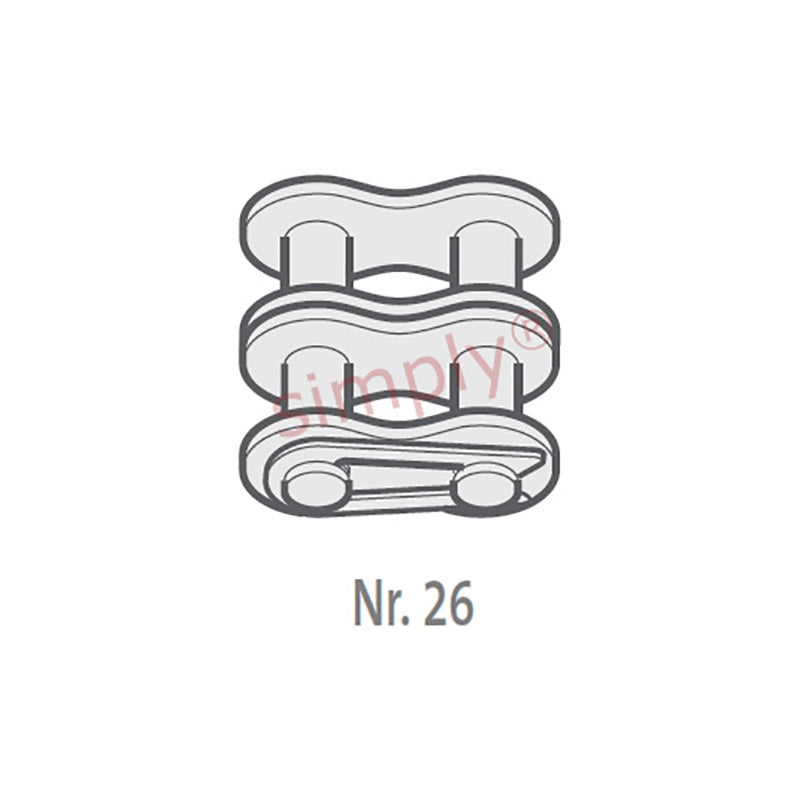

Renold Synergy 06B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
- Regular price
- $22.13 ex VAT
- Sale price
- $22.13
- Regular price
-
In stock
Quantity Price Breaks
2
$19.70
5
$18.59
10
$18.37
29
$18.15
49
$17.93
75
$17.70
100
$16.60
200
$16.38
250
$16.15
500
$15.93
1000
$15.49
SKU:
06B-2-SYN-NO26-RENOLD
Renold Synergy 06B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 3/8 inch Pitch
- Regular price
- $22.13 ex VAT
- Sale price
- $22.13
- Regular price
-
Description
| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 5.72mm |
| Roller Diameter max (C) | = | 6.35mm |
| Plate Height max (D) | = | 8.2mm |
| Plate Width Inner max (E) | = | 1.29mm |
| Plate Width Outer max (F) | = | 1.04mm |
| Pin Diameter max (G) | = | 3.28mm |
| Pin Length max (H2) | = | 23mm |
| Connecting Link Extension max (J) | = | 1.3mm |
| Transverse Pitch nom (K) | = | 10.24mm |
| ISO606 Tensile Strength min | = | 16900 N |
| Weight | = | 0.002kg/m |
