SKU: 06B-2-SNX-NO30-RENOLD
Renold SYNO 06B-2-NO30 BS Duplex Chain Double Cranked Link 3/8 inch Pitch
- Regular price
- $53.26 ex VAT
- Sale price
- $53.26
- Regular price
-
Not in stock
Quantity Price Breaks
2
$47.40
5
$44.74
10
$44.21
29
$43.67
49
$43.14
75
$42.61
100
$39.95
200
$39.41
250
$38.88
500
$38.35
1000
$37.28
SKU:
06B-2-SNX-NO30-RENOLD
Renold SYNO 06B-2-NO30 BS Duplex Chain Double Cranked Link 3/8 inch Pitch
- Regular price
- $53.26 ex VAT
- Sale price
- $53.26
- Regular price
-
Description

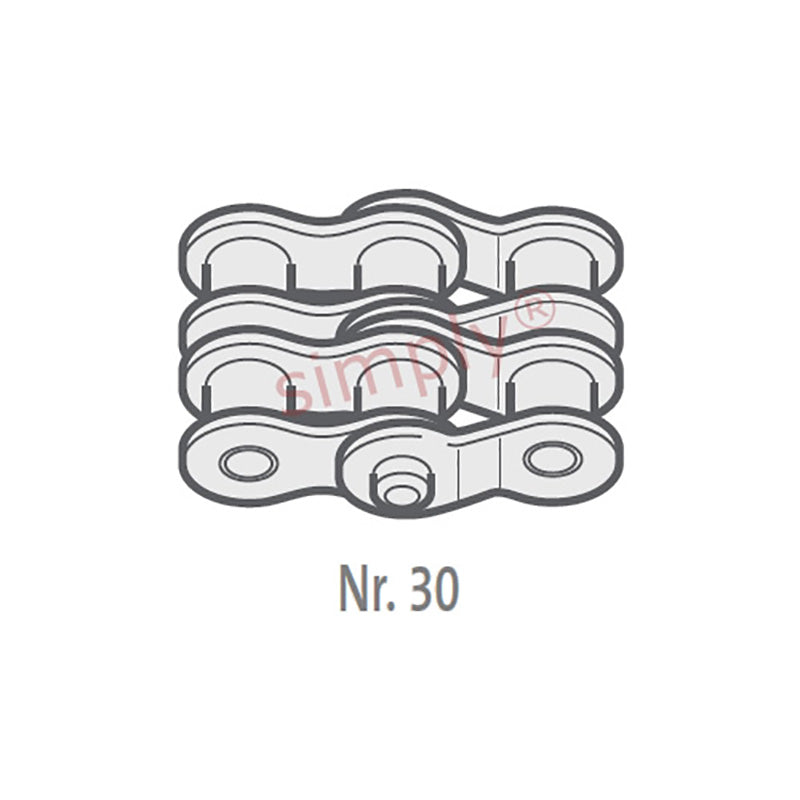

| Renold No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 5.72mm |
| Roller Diameter max (C) | = | 6.35mm |
| Plate Height max (D) | = | 8.2mm |
| Plate Width Inner max (E) | = | 1.29mm |
| Plate Width Outer max (F) | = | 1.04mm |
| Pin Diameter max (G) | = | 3.28mm |
| Pin Length max (H2) | = | 23mm |
| Connecting Link Extension max (J) | = | 1.3mm |
| Transverse Pitch nom (K) | = | mm |
| ISO606 Tensile Strength min | = | 16900 N |
| Weight | = | 0.002kg/m |
